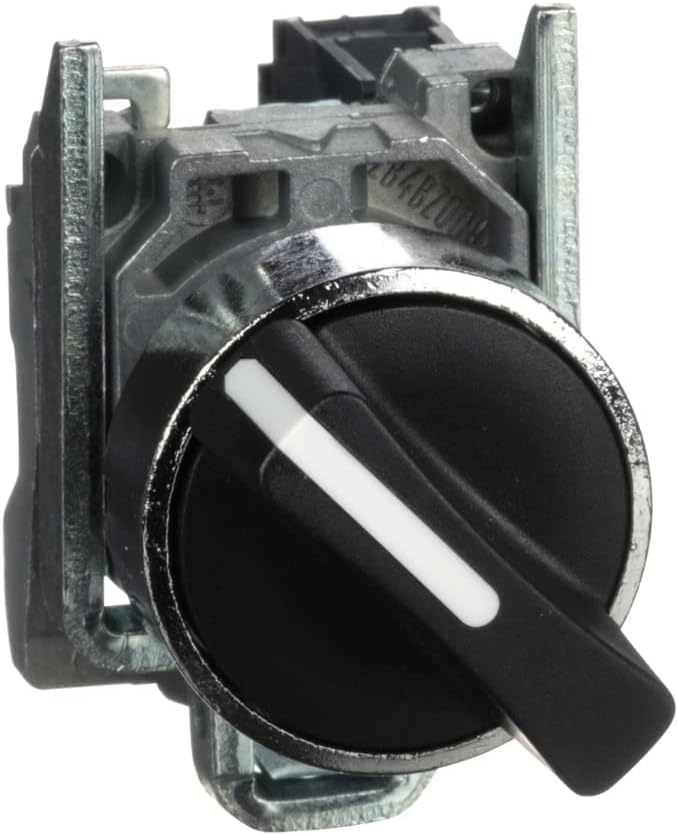

Schneider Electric XB4BD21 Harmony XB4 Selector Switch for Industrial Machinery with Metal Bezel, 2 Positions, Stay Put Operation, 1NO
Product details
| Management number | 211067071 | Release Date | 2026/04/04 | List Price | $10.15 | Model Number | 211067071 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
- EASY TO INSTALL: It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections; This modular black selector switch has 2 positions and operates with a stay-put mechanism
- SECURE CONNECTIONS: An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting; Shake proof connection screws make periodic retightening unnecessary
- RUGGED AND DURABLE: It has a metal bezel and is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments
- SPECIFICATIONS: Dimensions - 1.18 in (30 mm) D x 1.85 in (47 mm) H x 2.68 in (68 mm) D; Weight - 0.21 lb(US) (0.095 kg); Certified for meeting requirements for LROS (Lloyds register of shipping), BV, UL, GL, CSA, and DNV; 18 month warranty
| Color | Black |
|---|---|
| Model | XB4BD21 |
| Terminal | Screw |
| Brand Name | Schneider Electric |
| Unit Count | 1 Count |
| Item Weight | 0.08 Kilograms |
| Switch Type | Mechanical |
| Circuit Type | 2 positions 90° |
| Contact Type | Normally Closed |
| Manufacturer | Schneider Electric |
| Actuator Type | Hinge Lever |
| Material Type | Metal |
| Mounting Type | Panel Mount |
| Connector Type | Screw Clamp |
| Control Method | Push Button |
| Current Rating | 1 Milliamps |
| Item Type Name | Ø22mm Metal Switch, 2 Fixed Positions, Short Handle, Na |
| Operation Mode | ON-OFF |
| Item Dimensions | 2.13 x 1.34 x 3.46 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 600 Volts |
| Specification Met | UL |
| Included Components | Installation Guide |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 70 Degrees Celsius |
| International Protection Rating | IP00 |
| Global Trade Identification Number | 03389110887075 |
