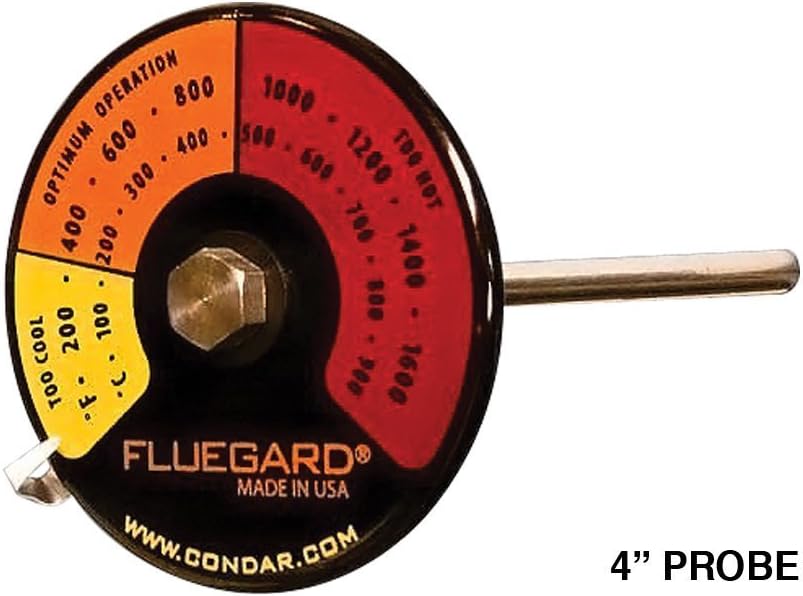

FlueGard Flue Gas Thermometer Probe

Condar's FlueGard (3-39) thermometer is designed for insertion into a double-wall stovepipe, with the end of the probe approximately centered inside the flue for accurate readings. To install a FlueGard Thermometer, drill a 1⁄4 inch hole in the outer wall, and a 3⁄16 inch hole through the inner wall. Position so the thermometer can be read easily at a glance. Slide the magnet then the eyelet onto the stem of the thermometer; and insert into the hole. When properly installed, the FlueGard accurately reads flue-gas temperatures, with an error margin less than 5%. If placed closer than 18 inches from the top of your stove or furnace, the thermometer will read slightly higher. Creosote on the stem of the thermometer will have little effect on the readings. When used on horizontal stovepipes, add 6% to temperature readings due to lower heat transfer. Before cleaning your flue pipe, remember to remove the thermometer.

• Condar's FlueGard (3-39) thermometer is designed for insertion into a double-wall stovepipe.
• Measuring the temperature up to 1700 degrees Fahrenheit.
• Dimension: 8" LX 5" WX 2" H
• To install a FlueGard Thermometer, drill a 1⁄4 inch hole in the outer wall, and a 3⁄16 inch hole through the inner wall.
