Display 5um Milling Lathe 2 Axis DRO Digital Readout And 0.005mm TTL Digital Linear Scale Encoder Sensor

<p>Professional design, beautiful appearance generous, counts the frequency response is fast and powerful.</p><p>Die-casting alloy shell, the surface electric pensu processing, dustproof wear-resisting, good shielding.</p><p>Professional design, independent power supply, to adapt to the range, high stability, strong anti-jamming capability.</p><p>Power supply and signal anti-interference ability, and panel of buttons, change is simple and convenient.</p><p>Directly on the digital table for functional operation functions such as sine, cosine, tangent function, convenient</p>

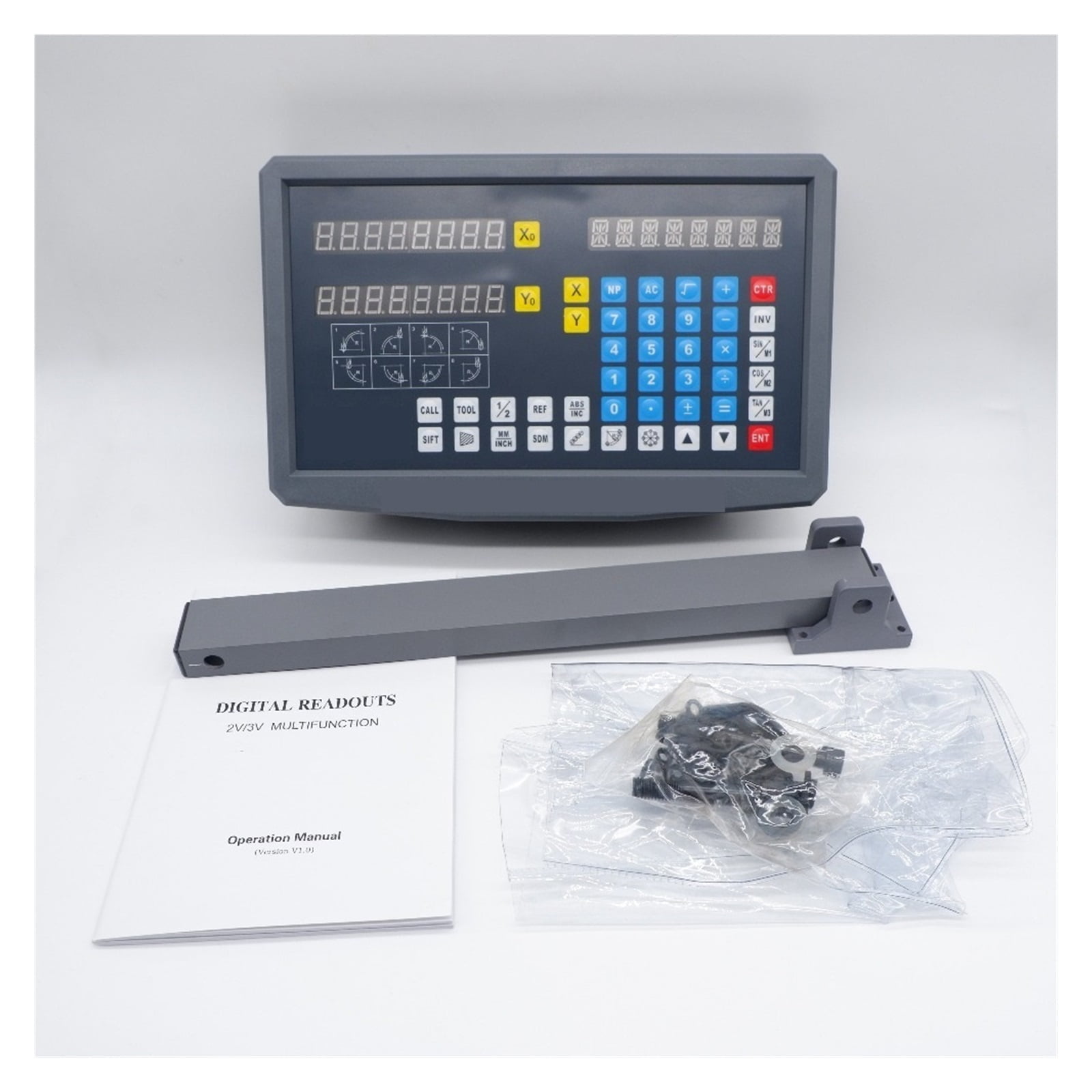

• Package includes
• -1pcs * 2V digital readout, mounting bracket
• -2pcs * 0.005mm travel length scales, scale covers
• -1 set * screw bag

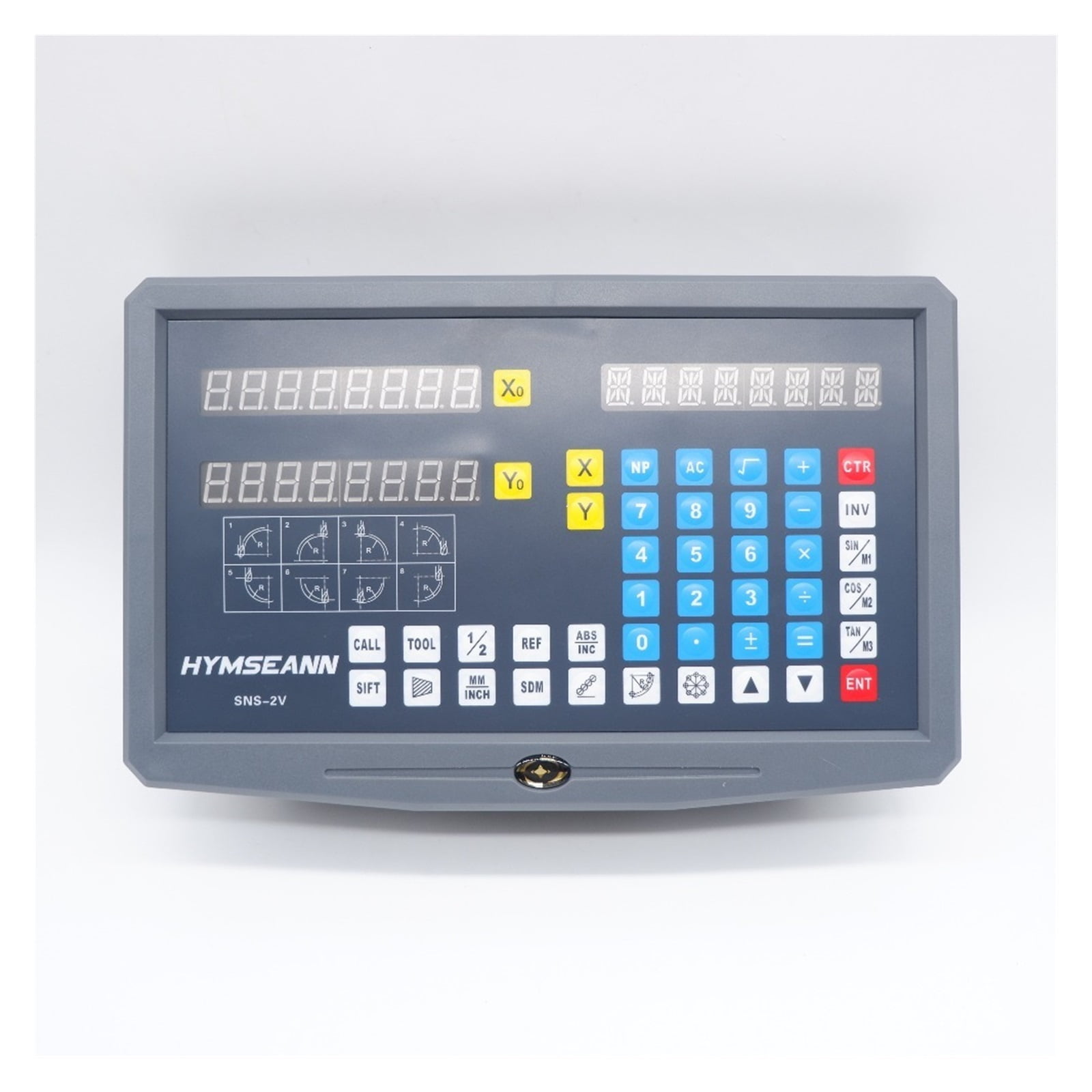

• Function
• 1:zero clearing
• 2:reset
• 3:mm/inch mode
• 4:ABS/INC coordinate conversion
• 5: 200sets sub datum
• 6:power off Memory;
• 7:center of1/2
• 8:liner error compensation
• 9:sleepping mode
• 10:Clear 200 sets Sdm datum;
• 11:ABS/INC mode
• 12:calculator
• 13:drilling of circumference
• 14:drilling of oblique line
• 15:machining of inclined plane
• 16:machining of circular arc
• 17:lathe function(match)
• 18:Rectangular lumen gradual processing
• 19:digital filtering
• 20:vibration filtering
• 21:R/D fucntion

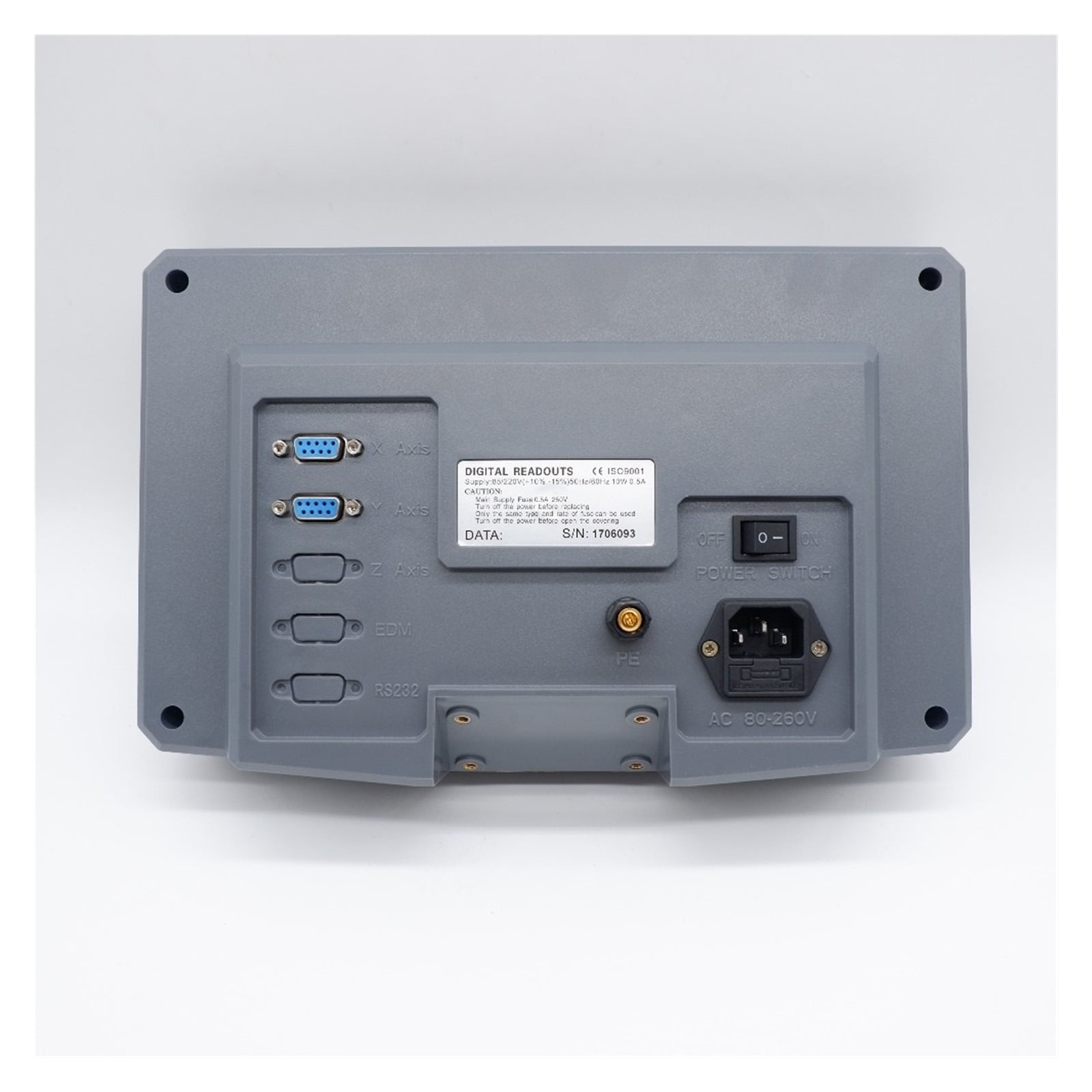

• Techincal Parameters
• 1.Voltage range:AC 85V-250V/50Hz-60hZ
• 2.Power consumption:25VA
• 3.Coordinates:1/2/3/4
• 4.Display:8-bits digits display
• 5.Input signal: TTL square
• 6.Input signal frequency: 100KHZ
• 7.Reading resolution: 10um,5um,2um,1um,0.5um

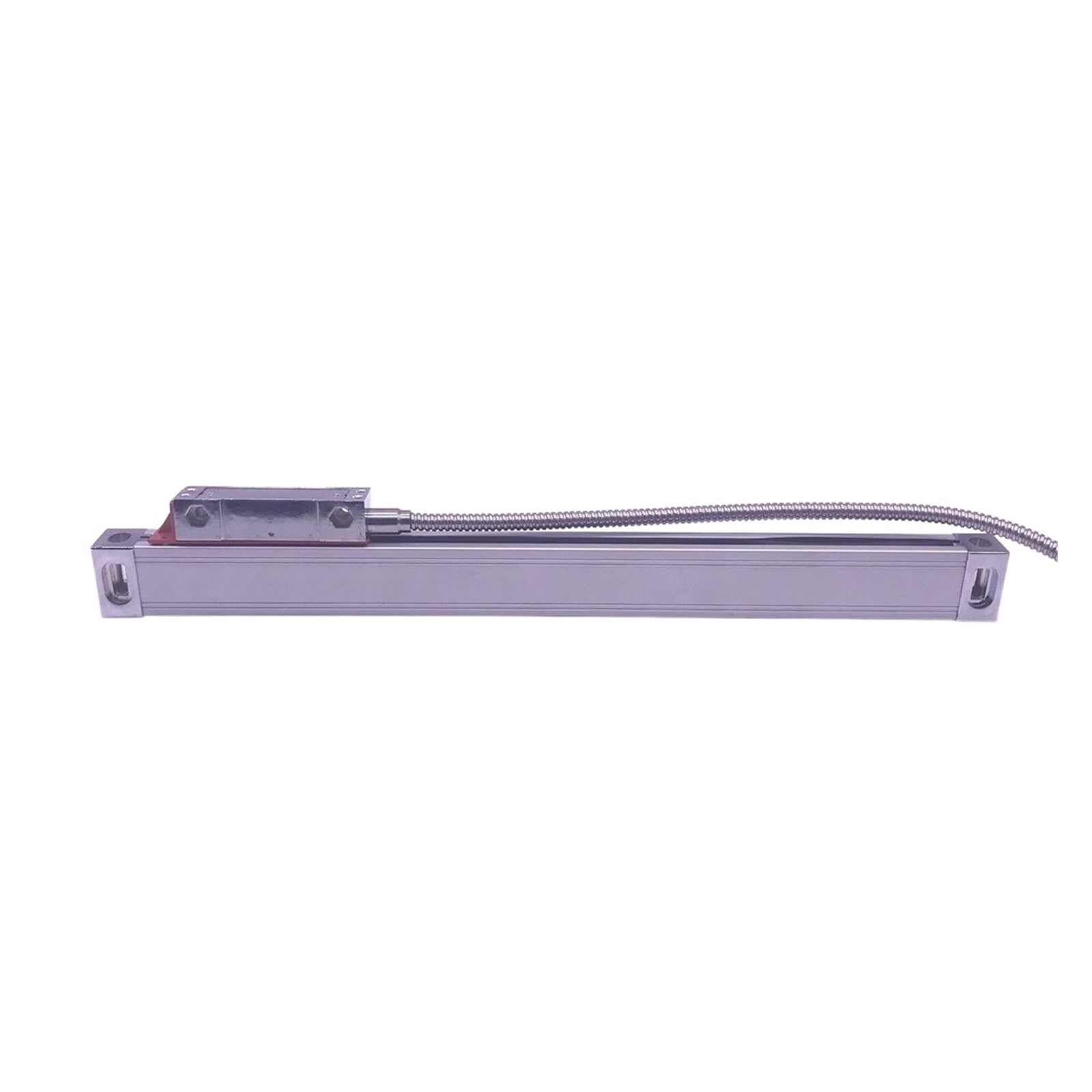

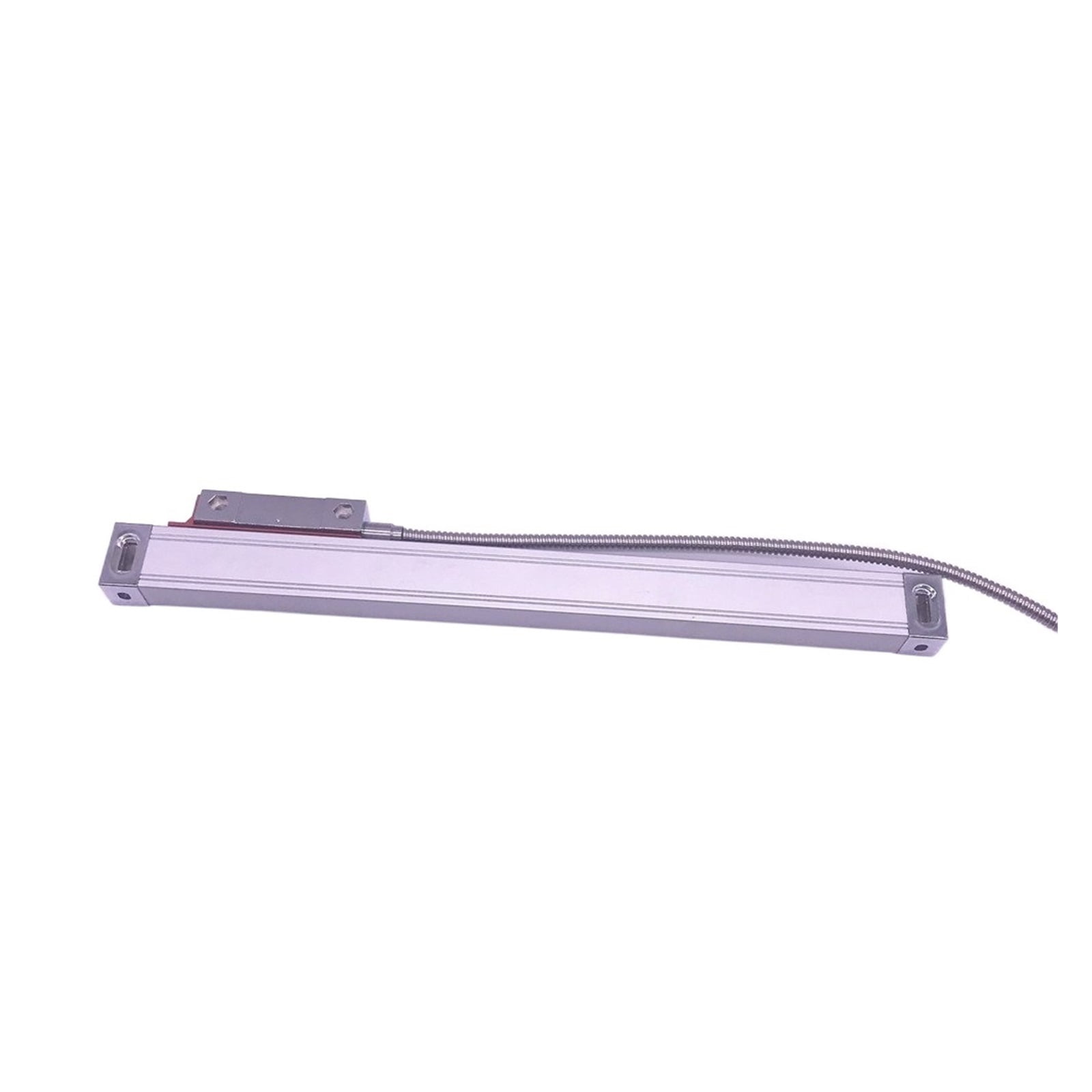

• Linear Scale Specification
• Parameter
• Product name:precision glass grating lenear transducer
• Model:NTS-M
• Resolution:5um(0.0002")
• Output signal:TTL
• Input voltage:DC 5V ±5%
• Available measuring distance:0-1000mm
• Overall length: available measuring distance + 142mm
• Working speed:60m/min
• Working temprature:0-50
• Cable length:2.5m-3m(longer option)
• Accessories:aluminum protective cover/L connection board/screws bag
